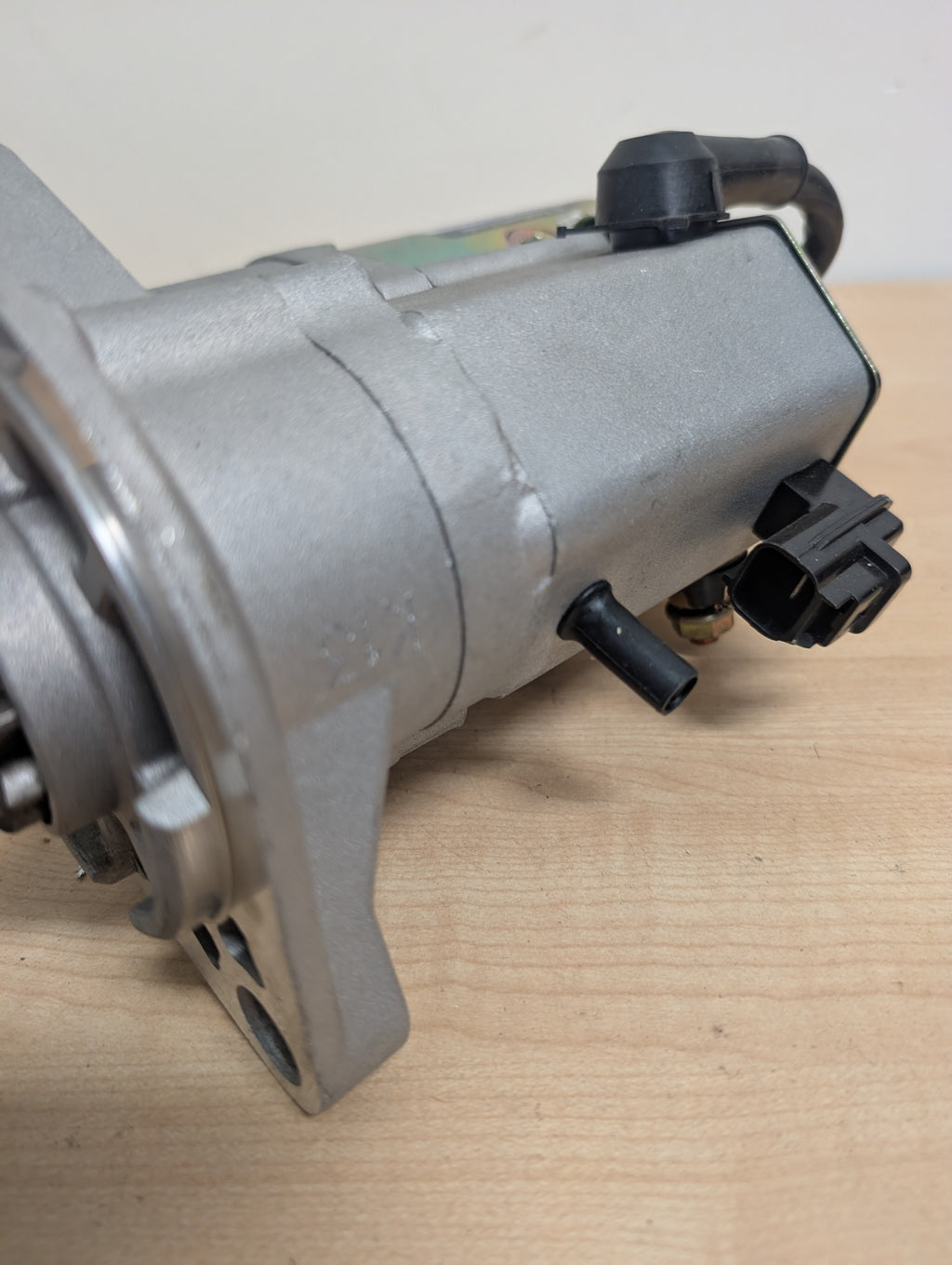

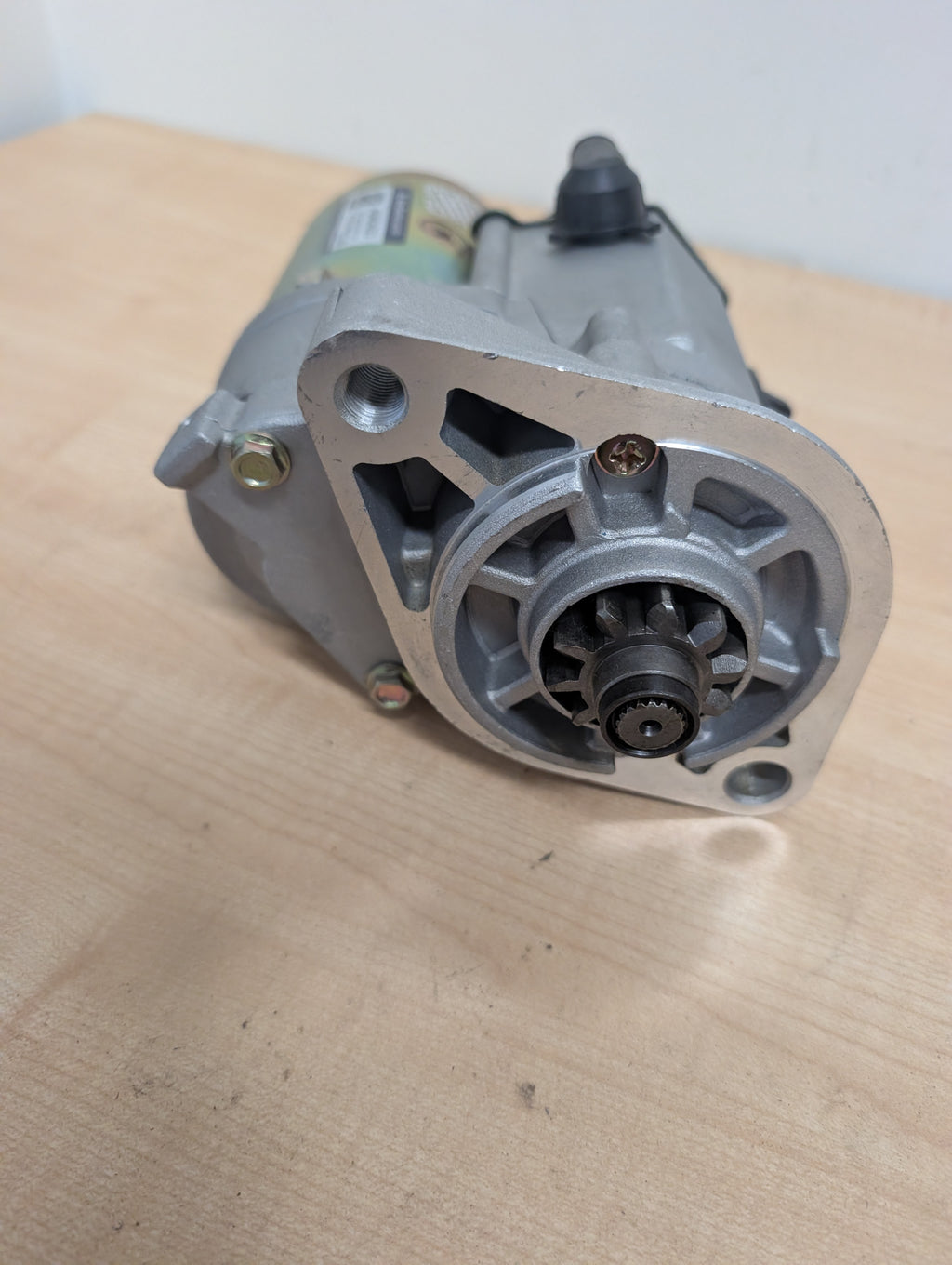

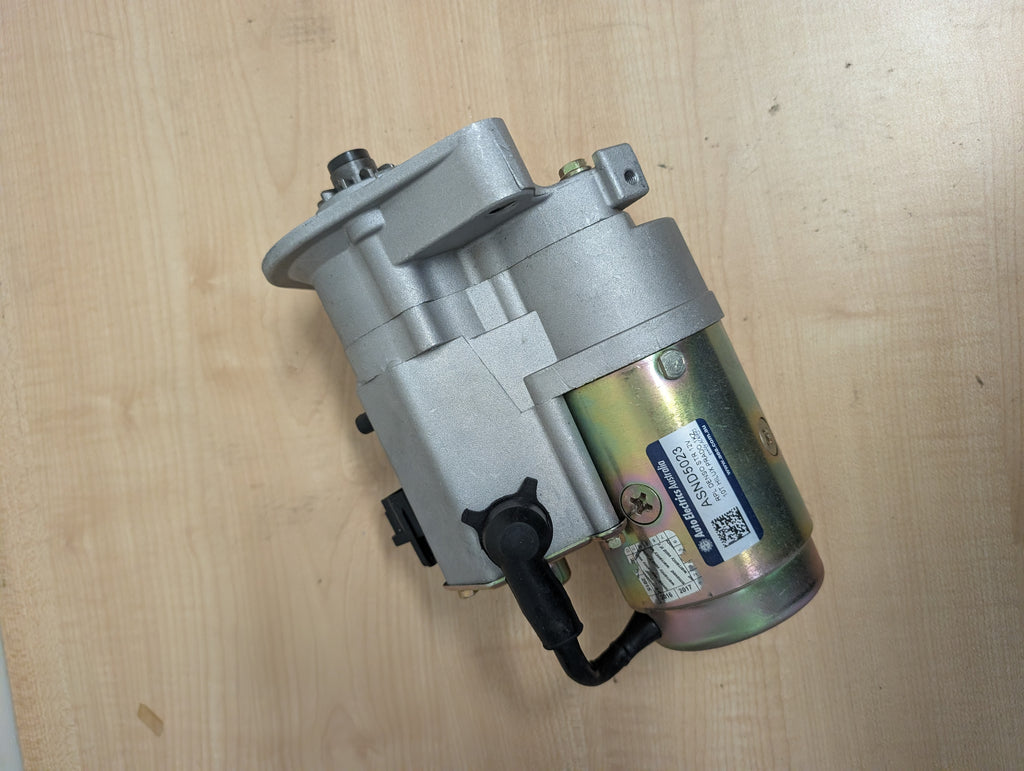

Auto Electrics Australia 12V 2.2kW 10T Denso Style Starter Motor (ASND5023)
Restore fast, high-torque engine cranking to your diesel 4x4 or commercial vehicle with the ASND5023 Starter Motor. Built to heavy-duty OEM specifications as a direct Denso replacement, this 2.2kW 12V unit provides maximum starting reliability under all operating conditions, whether cold starting or restarting under heavy loads.
Key Features & Highlights
-
High-Torque Performance: Delivers 2.2kW of cranking power to turn over high-compression 3.0L turbo diesel engines effortlessly.
-
Direct-Fit OE Replacement: Engineered to match factory mounting dimensions, flange spacing, and wiring connections for a seamless bolt-on fit.
-
Durable Construction: Features high-grade copper windings, a reinforced solenoid, and heavy-duty casing designed to withstand harsh off-road vibration and under-bonnet heat.
-
Rigorously Tested: Built to strict quality management standards, ensuring reliable engagement, low operating noise, and extended service life.
| Feature | Details |
| Supplier / Line | Auto Electrics Australia |
| Part Number | ASND5023 |
| Voltage | 12V DC |
| Power Rating | 2.2 kW |
| Tooth Count | 10-Tooth Pinion |
| Pinion Diameter | 38 mm |
| Rotation | Clockwise (CW) |
| Flange Diameter | 82 mm |
| Mounting Center-to-Center | 130 mm |
| Mounting Holes | 1 x M12 / 1 x 13.5mm |
Common Vehicle Applications
Suits popular Toyota 3.0L Turbo Diesel (1KZ-TE & 1KD-FTV D-4D) and Daihatsu commercial engines, including:
-
Toyota HiLux:
-
KZN165 Series 3.0L 1KZ-TE Turbo Diesel (1999 – 2005)
-
KUN16R / KUN26R Series 3.0L 1KD-FTV D-4D Turbo Diesel (2005 – 2015)
-
-
Toyota Land Cruiser Prado:
-
KZJ90R / KZJ95R Series 3.0L 1KZ-TE Turbo Diesel (1996 – 2003)
-
KZJ120R / KDJ120R Series 3.0L 1KZ-TE / 1KD-FTV Turbo Diesel (2002 – 2009)
-
KDJ150R Series 3.0L 1KD-FTV Turbo Diesel (2009 – 2015)
-
-
Toyota HiAce:
-
KDH200 / KDH201 / KDH221 Series 3.0L 1KD-FTV Turbo Diesel (2005 – 2015)
-
-
Daihatsu Delta Bus / Truck:
-
V138 Series 3.0L 1KD-FTV Turbo Diesel (2003 – On)
-
OE & Cross-Reference Part Numbers
Toyota / Daihatsu OEM Part Numbers:
-
28100-67050 / 2810067050
-
28100-67051 / 28100-67052
-
28100-30050 / 28100-30051
Denso Part Numbers:
-
228000-5023 / 2280005023
-
228000-5020 / 228000-5021 / 228000-5022
